Architecture Overview

System Topology

How components are arranged in the default in-process binary versus the multiproc daemon + agent layout.

Runtime Modes

Mode	Description	When to Use

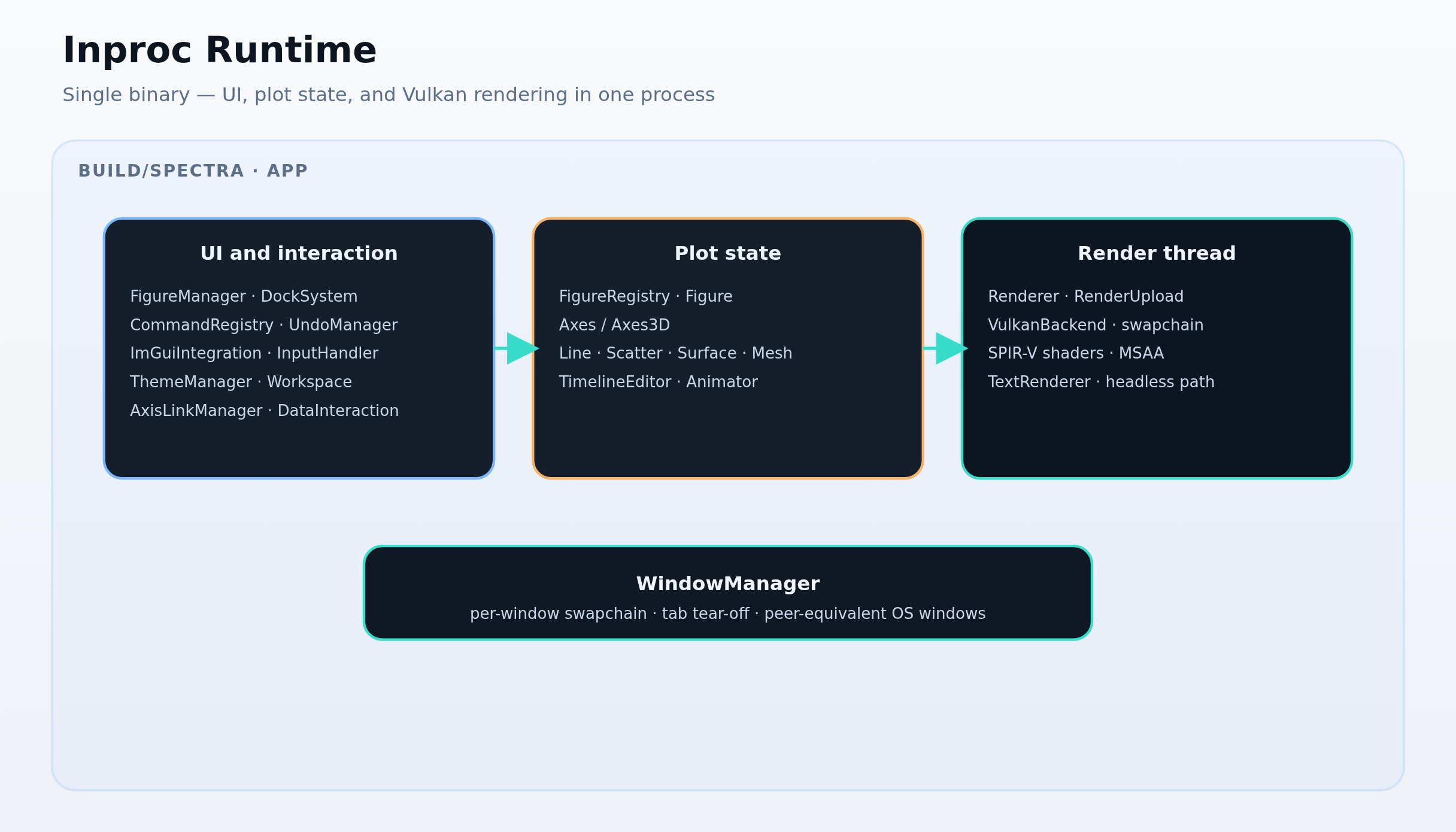

In-process	UI, renderer, and plotting state in one process	Desktop apps, low-latency interactive use

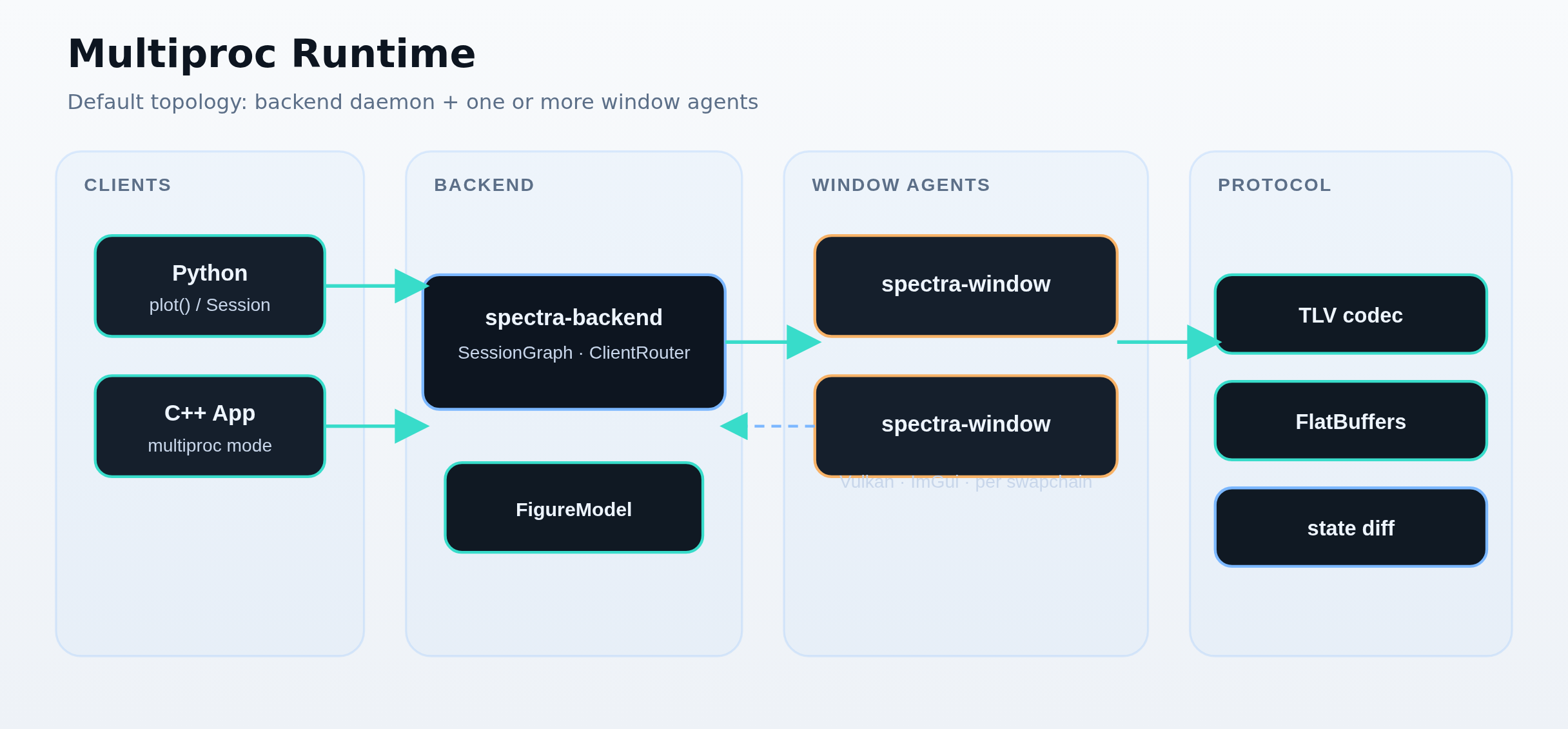

Multi-process	Backend daemon + window/agent processes via IPC protocol	Isolation, orchestration, Python-driven sessions

Mode Selection

Condition	Mode
AppConfig::socket_path is set	Multiproc (connects to spectra-backend)
SPECTRA_SOCKET env var is set	Multiproc
Neither	Inproc (default, single-process)

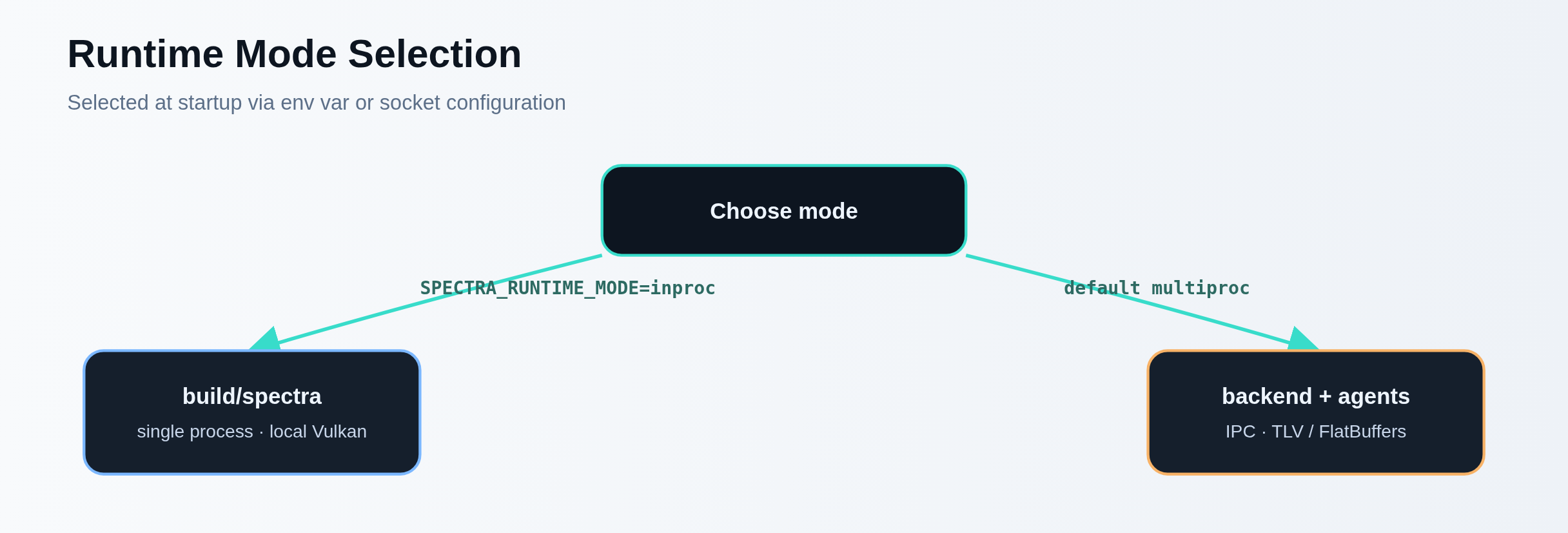

Mode selection flow

SPECTRA_RUNTIME_MODE, AppConfig::socket_path, or SPECTRA_SOCKET pick inproc vs multiproc at startup.

Python IPC sequence →

Key Design Decisions

• Vulkan 1.2+ — Explicit memory management, headless rendering, async buffer uploads, depth buffer for 3D, MSAA
• Screen-space SDF rendering — Lines and markers use signed-distance-field anti-aliasing; resolution-independent at any zoom
• GPU-accelerated styling — Dash patterns and 18 marker types rendered entirely in fragment shaders
• GPU text pipeline — Vulkan text rendering with stb_truetype atlas, depth-tested 3D labels
• Lock-free threading — SPSC ring buffer decouples the user's app thread from the GPU render thread
• No global state — All managers are stack-allocated and passed by pointer; thread-safe via std::mutex
• No primary window — All OS windows are peer-equivalent, managed uniformly by WindowManager
• Stable figure IDs — FigureId typedef with FigureRegistry replaces positional indexing
• Runtime dual-mode — Inproc vs multiproc selected at runtime, both code paths always compiled
• Header-only math — Self-contained vec3/vec4/mat4/quat library (~350 LOC); no GLM dependency
• Workspace backward compat — v4 format loads v1/v2/v3 files with sensible defaults
• IPC protocol — Versioned TLV binary protocol with request_id correlation, seq ordering, snapshot + diff

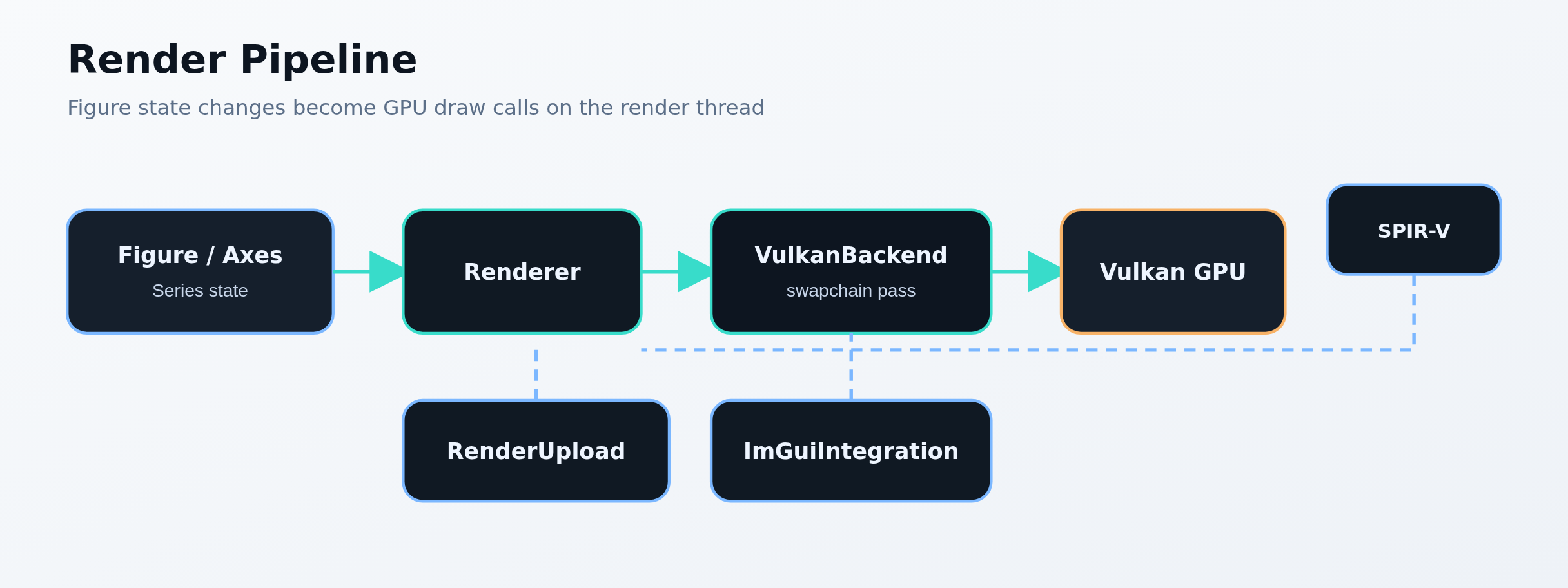

Rendering Safety Principles

• Fence-aware frame lifecycle — never destroy resources without waiting on fences
• Swapchain recreation paths for resize / VK_ERROR_OUT_OF_DATE_KHR
• No per-frame pipeline rebuilds or descriptor pool allocations in hot paths
• No vkDeviceWaitIdle() inside the frame loop
• Safe resize sequence: wait fences → destroy → recreate swapchain → recreate framebuffers → update projection → re-record
• Validation-focused CI with golden regression tests via lavapipe

Project Structure

spectra/
├── include/spectra/       # Public headers: spectra.hpp, easy.hpp, math3d.hpp,
│                          #   plot_style.hpp, axes.hpp, axes3d.hpp, series.hpp,
│                          #   series3d.hpp, fwd.hpp, ...
├── src/

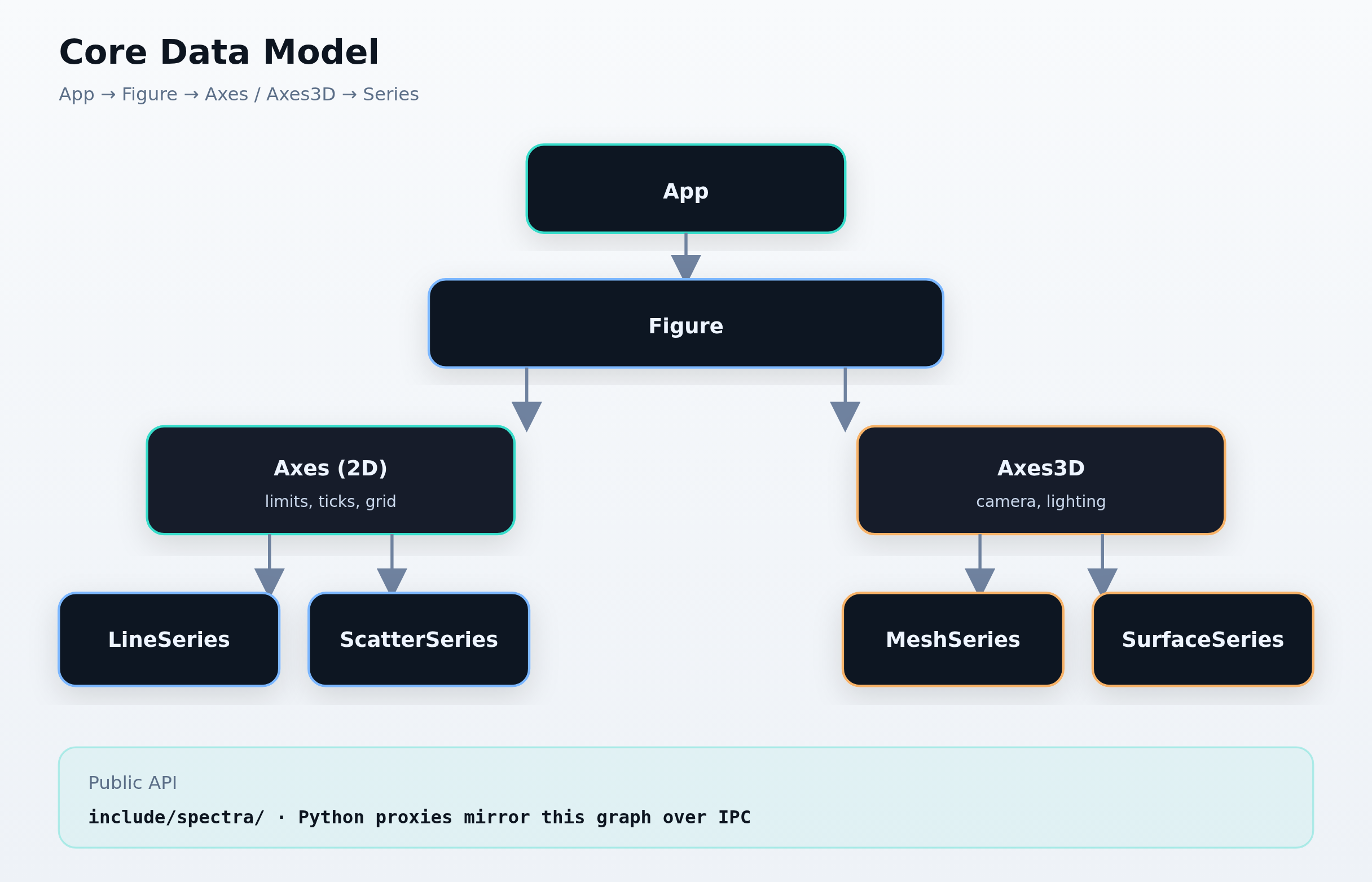

│   ├── core/             # Figure, Axes, Axes3D, Series, Series3D, layout, coords
│   ├── render/           # Renderer, TextRenderer, abstract Backend interface
│   │   └── vulkan/       # VulkanBackend, device, swapchain, pipeline, buffers,
│   │                     #   WindowContext
│   ├── gpu/shaders/      # GLSL 450: line, scatter, grid, text, surface3d, mesh3d
│   ├── anim/             # Animator, easing, frame scheduler, frame profiler
│   ├── ui/               # App, WindowManager, FigureManager, DockSystem,
│   │                     #   ThemeManager, CommandRegistry, ShortcutManager,
│   │                     #   UndoManager, TransitionEngine, TimelineEditor,
│   │                     #   KeyframeInterpolator, AnimationCurveEditor,
│   │                     #   CameraAnimator, ModeTransition, Inspector,
│   │                     #   DataInteraction, AxisLinkManager, DataTransform,
│   │                     #   RecordingExport, Workspace, PluginAPI, CsvLoader
│   ├── ipc/              # IPC protocol: message types, TLV codec, transport
│   ├── daemon/           # spectra-backend: FigureModel, SessionGraph,
│   │                     #   ClientRouter, ProcessManager
│   └── agent/            # spectra-window: agent main loop, snapshot→Figure
├── python/
│   ├── spectra/          # Python package: Session, Figure, Axes, Series,
│   │                     #   easy API, codec, transport
│   ├── examples/         # Python example scripts
│   └── tests/            # Python test suite (50+ tests)
├── examples/             # 40+ C++ example programs
├── tests/
│   ├── unit/             # 1,200+ unit tests (Google Test)
│   ├── golden/           # Golden image tests (2D + 3D phases)
│   ├── bench/            # Performance benchmarks (100+)
│   └── util/             # MultiWindowFixture, ValidationGuard, GpuHangDetector
├── docker/               # Docker Compose + Dockerfile
├── packaging/            # AppImage, AUR, Homebrew, shell completions
├── third_party/          # stb_image, stb_image_write, stb_truetype, VMA
├── plans/                # Architecture plans, roadmap, UI redesign spec
├── cmake/                # CompileShaders, EmbedShaders, EmbedAssets, config
├── .github/workflows/    # CI + Release pipeline
├── version.txt           # Single source of truth: 0.1.0
├── Makefile              # Developer workflow shortcuts
└── CMakeLists.txt        # Root build configuration

Deep Dives

Contributing Guidelines

The codebase is organized into independent modules — see plans/agents_plan.md for the module decomposition.

1. C++20 — No global state, RAII throughout, thread-safe via std::mutex
2. Public headers — Keep include/spectra/ minimal; implementation in src/
3. Tests required — Add unit tests for new functionality; run ctest before submitting
4. No speculative fixes — Measure first (add instrumentation, capture timing) before optimizing
5. Vulkan safety — Never destroy resources without waiting on fences; follow the safe resize sequence
6. Window independence — No "primary window" assumptions; all windows must behave identically

# Development workflow
make build test     # Build + run tests
make format         # clang-format
make pip-dev        # Python dev install
cd docker && docker compose up --build spectra-xvfb
