Multiproc Architecture
Clients encode IPC messages; the backend daemon owns FigureModel and SessionGraph, then routes work to Vulkan window agents.
Runtime & IPC
How clients connect to spectra-backend, spawn window agents, and choose
in-process vs multi-process mode.
Python IPC Sequence
Session lifecycle from socket connect through figure creation, series append, state diff fan-out, and GPU frame render.
Runtime Modes
SPECTRA_RUNTIME_MODE selects in-process build/spectra or the default multiproc backend + agent topology.
Inproc Topology
Single-process build/spectra — UI, plot state, and Vulkan in one binary.
Core Model & Rendering
The object hierarchy from App down to series types, and the GPU path from
state change to Vulkan draw calls.
Data Model Hierarchy
App → Figure → Axes / Axes3D → Series — the stable public object graph mirrored by Python proxies over IPC.
Render Pipeline
State mutations become draw lists; RenderUpload stages CPU data while SPIR-V shaders and ImGuiIntegration share the swapchain pass.
Adapters & Extensions
ROS2, PX4, Qt embedding, headless export, plugins, and the experimental WebGPU path.
ROS2 Data Path
Background executor introspects messages; SPSC rings decouple the render thread.
PX4 Workflows
Offline ULog browsing and live MAVLink telemetry share one plot stack.
Qt Embed
QtRuntime owns Vulkan init; the Qt event loop drives frames.
Plugin Extension Points

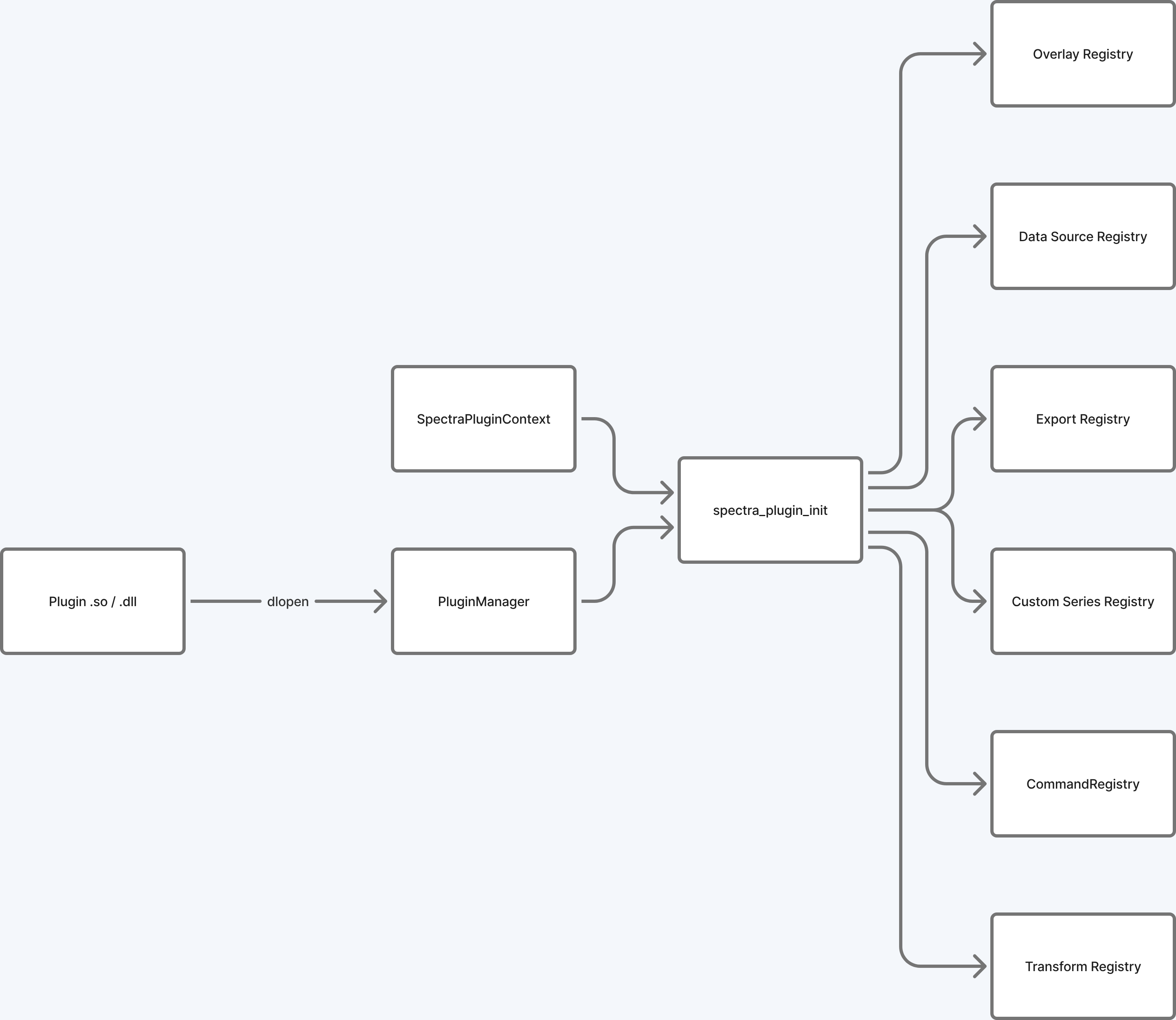

spectra_plugin_init registers commands, transforms, overlays, and more.
Easy Embed

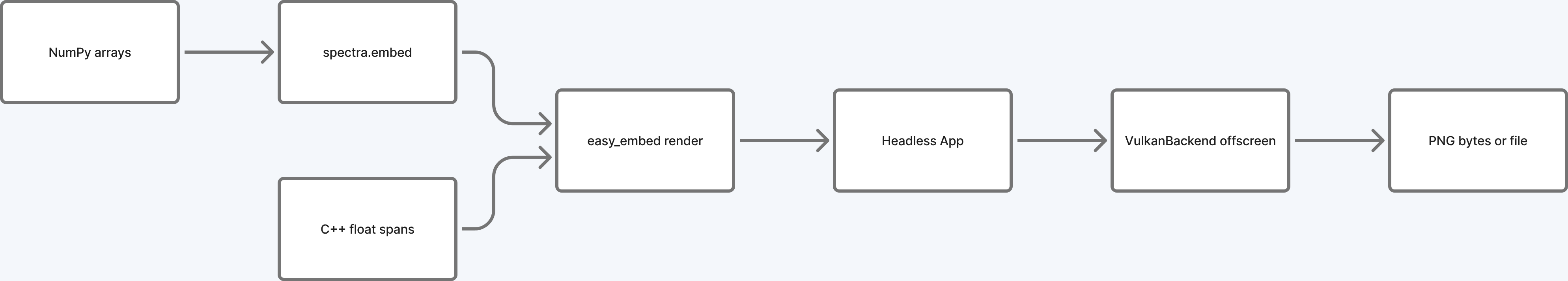

One-liner offscreen render — no window, no daemon, pixels out.
WebGPU Dual Runtime
Same C++ core; experimental 2D path via Dawn or browser WebGPU.
Live Data Topics
ROS-style named streams published into the backend and plotted on demand from any window.
Topics Publish & Subscribe
Publishers survive client disconnect; window agents subscribe by dragging topics onto axes.
